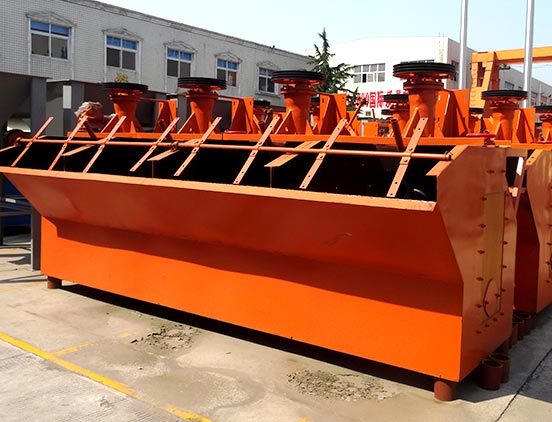

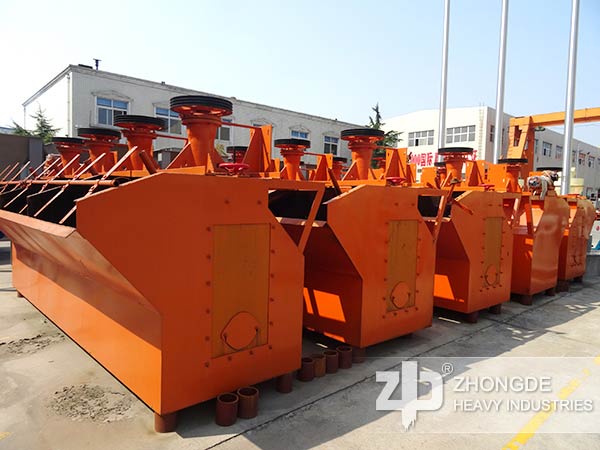

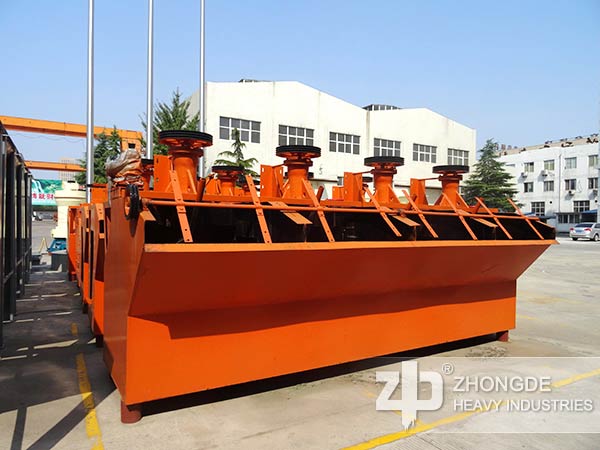

Introduction of Flotation Machine

1.Flotation machine is mainly used for the separation of non-ferrous metals,ferrous metals and non-metallic mineral such as copper ore,gold ore,silver ore ,zinc ore,lead ore,molybdenum,etc.

2.Due to its optimized structure,it can form strong slurry circulation.

3.Each flotation cell has the functions of air suction,ore pulp suction and flotation,which can form the flotation ircuit itself without auxiliary equipment.

4.Flotation machine adopts horizontal configuration,which makes it easy to change process.

Advantages of Flotation Machine

1.High separation efficiency,high enrichment ratio.

2.Reasonable ore pulp circulation reduces coarse sand sediment.

3.Large air-absorption capacity,low energy consumption.

4.Automatic and electric ocntrol device of ore pulp level,easy adjustment.

5.Easy operation,long service life.

Technical Data

SF Series Flotation Machine
BF Series Flotation Machine
KYF Series Flotation Machine
XCF Series Flotation Machine

Category	Specification Model	Effective cubage （m³）	Processing capacity （m³/min）	Main shaft loam board				Dimensions (L×W×H) （m）	Single trough Weight （t）
Category	Specification Model	Effective cubage （m³）	Processing capacity （m³/min）	Power（kw）	Rotate Speed（r/min）	Rotate Speed(r/min）	Power（kw）	Dimensions (L×W×H) （m）	Single trough Weight （t）
XJK type flotation machine	XJK-0.35	0.35	0.18-0.4	1.5	483	25	1.1	0.7×0.7×0.7	0.5
	XJK-0.62	0.62	0.3-0.9	3.0	400	25	1.1	0.90×0.82×0.85	1.0
	XJK-1.1	1.1	0.6-1.6	5.5	330	25	1.1	1.1×1.1×1	1.4
	XJK-2.8	2.8	1.5-3.5	11	280	25	1.1	1.75×1.6×1.1	2.5
	XJK-5.8	5.8	5-7	22	240	25	1.5	2.2×2.2×1.2	3.6
SF type flotation machine	SF-0.37	0.37	0.2-0.4	1.5	386	25	1.1	0.7×0.7×0.75	0.5
	SF-0.7	0.7	0.3-0.9	3	400	25	1.1	0.9×0.82×0.95	1.0
	SF-1.2	1.2	0.6-1.6	5.5	330	25	1.1	1.1×1.1×1.1	1.9
	SF-2.8	2.8	1.5-3.5	11	268	25	1.1	1.75×1.6×1.15	2.6
	SF-4	4	2-4	15	220	25	1.5	1.85×2.05×1.2	2.9
	SF-8	8	4-8	30	191	25	1.5	2.2×2.9×1.4	4.2
	SF-10	10	5-10	30	191	25	1.5	2.2×2.9×1.7	4.5
	SF-20	20	5-20	30×2	191	25	1.5	2.85×3.8×2	9.9
JJF type flotation machine	JJF-2	2	1-3	7.5	443	25	1.5	1.4×1.4×1.1	1.7
	JJF-4	4	2-4	11	305	25	1.5	1.6×2.15×1.25	2.4
	JJF-8	8	4-8	22	233	25	1.5	2.2×2.9×1.4	4.5
	JJF-10	10	5-10	22	233	25	1.5	2.2×2.9×1.7	4.9
	JJF-16	16	5-16	30	180	25	1.5	2.85×3.8×1.7	8.0
	JJF-20	20	5-20	37	180	25	1.5	2.9×3.8×2.0	10.5

Model	Trough cubage （m³）	Inside dimensions （L×W×H）（m）	Air suction amount （m³/㎡·min）	Power （kw）	Motor model	Processing capacity （m³/min）	Single trough weight (t)
BF-0.37	0.37	0.74×0.74×0.75	0.9～1.05	1.5	Y90L-4	0.2～0.4	0.5
BF-0.65	0.65	0.85×0.95×0.9	0.9～1.10	3.0	Y132S-6	0.3～0.7	1.0
BF-1.2	1.2	1.05×1.15×1.10	1.0～1.10	5.5 4.0	Y132M2-6 Y132M1-6	0.6～1.2	1.4
BF-2.0	2.0	1.40×1.45×1.12	1.0～1.10	7.5	Y160M-6	1.0～2.0	1.8
BF-2.8	2.8	1.65×1.65×1.15	0.9～1.10	11	Y180L-8	1.4～3.0	2.2
BF-4.0	4.0	1.9×2.0×1.2	0.9～1.10	15	Y200L-8	2～4	2.6
BF-6.0	6.0	2.2×2.35×1.3	0.9～1.10	18.5	Y225S-8	3～6	3.3
BF-8.0	8.0	2.25×2.85×1.4	0.9～1.10	22 30	Y225M-8 Y250M-8	4～8	4.2
BF-10	10	2.25×2.85×1.7	0.9～1.10	22 30	Y225M-8 Y250M-8	5～10	4.7
BF-16	16	2.85×3.8×1.7	0.9～1.10	37 45	Y280S-8 Y280M-8	8～16	8.4
BF-20	20	2.85×3.8×2.0	0.9～1.10	37 45	Y280S-8 Y280M-8	10～20	8.7
BF-24	24	3.15×4.15×2.0	0.9～1.10	45	Y280M-8	12～24	9.2

Model		KYF-1	KYF-2	KYF-3	KYF-4	KYF-8	KYF-16	KYF-24	KYF-38
Chute Dimensions	Length（mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Width（mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Height（mm）	1100	1250	1400	1500	1950	2400	2900	3400
Single effective Weight（t）		1.1	1.5	1.9	2.3	3.6	5.9	9.9	15.1
Effective cubage（m³）		1	2	3	4	8	16	24	38
Production Capacity calculated by slurry volume(m³/min)		0.2-1	0.4-2	0.6-3	1.2-4	3—8	4—6	4—24	10—38
Main shaft motor	Model	Y132M1-6	Y160M2-8	Y160L-8	Y180L-8	Y200L-8	Y250M-8	Y250M-8	Y280S-8
	Power（kw）	4	5.5	7.5	11	15	30	30	37
	Rotate speed(r/min)	960	720	720	970	730	730	730	740
	Diameter（mm）	340	410	480	550	630	740	800	880
	Height（mm）	215	256	300	340	390	460	—	545
	Rotate speed(r/min)	281	247	219	200	175	160	150	138
	Circular velocity(m/s)	5	5.3	5.5	5.76	5.77	6.7	6.25	6.36
Loam board motor	Model	Y90S-4	Y90S-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4
	Power（kw）	1.1	1.1	1.5	1.5	1.5	1.5	1.5	1.5
	Rotate speed(r/min)	1400	1400	1400	1400	1400	1400	1400	1400
Loam board	Rotate speed(r/min)	18	18	16	16	16	16	16	16
Loam board	Diameter（mm）	500	500	580	600	600	700	700	500
Wind pressure of fan（kpa）		≥12.6	≥14.7	≥19.8	≥19.8	≥21.6	≥25.5	≥30.4	≥34.3
Max. air injection amount(m³/㎡·min)		2	2	2	2	2	2	2	2

Model		XCF-1	XCF-2	XCF-3	XCF-4	XCF-8	XCF-16	XCF-24	XCF-38
Dimensions	Length（mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Width（mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Height（mm）	1100	1250	1400	1500	1950	2400	10819	3400
Single Effective Weight（t）		1.2	1.7	2.3	2.7	3.9	6.6	8.0	16.8
Effective cubage（m³）		1	2	3	4	8	16	24	38
Production Capacity calculated by slurry volume(m³/min)		0.2—1	0.4—2	0.6—3	1.2—4	3—8	4—16	4—24	10—38
Main shaft motor	Model	Y132M2-6	Y160M-6	Y160L-6	Y180L-6	Y200L2-6	Y280S-8	Y280S-8	Y280S-6
Main shaft motor	Power（kw）	5.5	7.5	11	15	22	37	37	45
Impeller	Rotate speed(r/min)	960	970	970	970	970	740	740	980
	Diameter（mm）	400	460	540	620	720	860	950	—
	Height（mm）	155	175	207	247	321	349	—	—
	Rotate speed(r/min)	358	331	266	215	185	160	153	—
	Circular velocity(m/s)	7.5	7.5	7.5	7	6.97	7.6	7.6	7.4
loam board motor	Model	Y90S-4	Y90S-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4
	Power（kw）	1.1	1.1	1.5	1.5	1.5	1.5	1.5	1.5
	Rotate speed(r/min)	1400	1400	1400	1400	1400	1400	1400	1400
loam board	Rotate speed(r/min)	18	18	16	16	16	16	16	16
loam board	Diameter（mm）	500	500	580	600	600	700	700	700
Wind pressure of fan （kpa）		≥12.6	≥14.7	≥19.8	≥19.8	≥21.6	≥25.5	≥30.4	≥34.3
Max. air injection amount(m³/㎡·min)		2	2	2	2	2	2	2	2
