Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Materials: stone, coal, limestone, granite, basalt, quartz, iron ore, gold ore, marble, etc.
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h
Overview
1.It can not convey dry powder or too much granular material or there will be dust pollution phenomenon and the discharge port will be clogged.
2.This machine is able to send the materials from the material cabin to the material receiving machine in a even, regular and continuous manner and it can be used for feeding materials to ball mill or belt conveyor.
Advantages:
1.Compact structure.
2.Regulating performance.
3.Low power consumption.
4.Stable and reliable vibration.
5.Adjustable centrifugal force.
6.Convenient and stable adjustment.
7.Low noise and little environmental pollution.

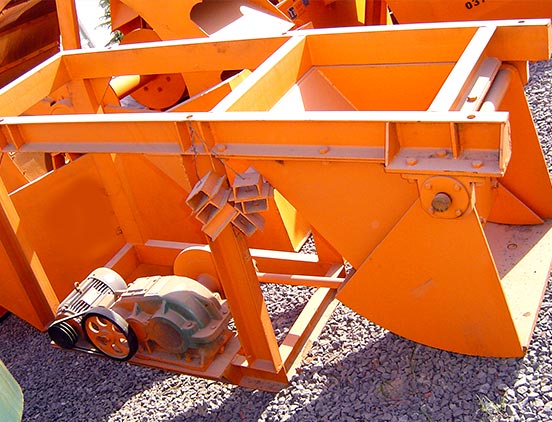

| Product Name | Pendulum feeder | Pendulum feeder | ||
| Product size | 400×400 | 600×600 | ||
| Swing times(time / min-1) | 47 | 45.8 | ||
| Discharge opening(mm) | Width | 400 | 600 | |
| Height | 400 | 600 | ||
| Swing journey(mm) | 0-170 | 0-220 | ||
| Max.Feeding Size(mm) | 35 | 50 | ||
| Processing capacity(t/h) | 0-12 | 3-25 | ||
| Motor | Model | Y90S-4 | Y100L-4 | |
| Power(kw) | 1.1 | 2.2 | ||
| Total weight(kg) | 269 | 558 | ||
