Roller Crusher

Roller Crusher

Reference Price:

Get Latest Price Reference Price
  • Production capacity
    5-110t/h

  • Max Iutput Size
    ≤25mm

  • Output Size
    2-10mm

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

Processing Material:coal, coal gangue, pebble, calcite, granite, quartz, gravel, dolomite, iron ore, limestone, basalt, sandstone, rocks, soil, ore and other minerals.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

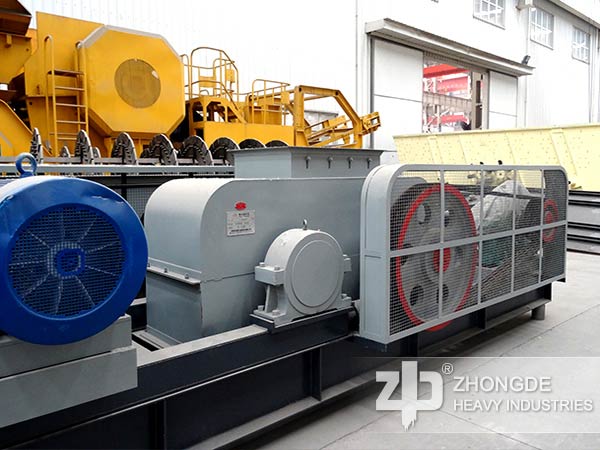

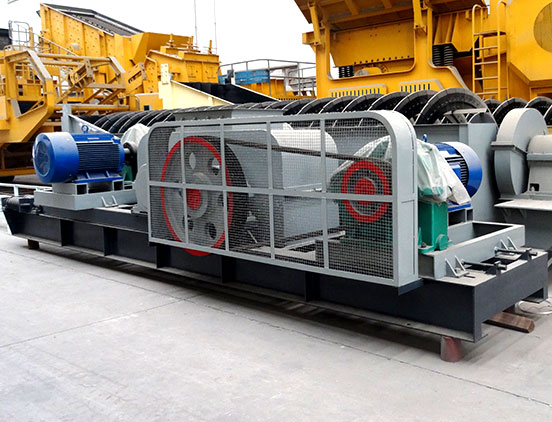

Overview of Roller Crusher

1.The roller crusher, also known as roll crusher, roll breaker or roller crusher machine, can be divided into single roller crusher,double roller crusher,four roller crusher according to its structure.

2.Roller crusher is widely used for the secondary and fine crushing of the materials with medium and high hardness such as limestone,brick block,sandstone.It also can be used for the fine crushing of viscous material,such as clay, soil, coal,etc.

3.The production capactiy range of double roller crusher is 5-110t/h.You can choose the proper type of roller crusher according to your materials features and requirements.

Advantages of Roller Crusher

1.Optimized grinding roller,high production efficiency.

2.Strong crush strength and high crushing ratio, without over-crushed phenomenon.

3.Reliable operation,easy maintenance.

4.Energy saving and environmental protection.

5.Durable,long service life.

Technical Data

Model 2PG0425 2PG0640 2PG0740 2PG0850 2PG1060 2PG1260 2PG1560
Roller diameter(mm) Ф400 Ф600 Ф700 Ф800 Ф1000 Ф1200 Ф1500
Roller width(mm) 250 400 400 500 600 600 600
Input Size(mm) ≤25 ≤25 ≤25 ≤25 ≤30 ≤30 ≤30
Discharging Gate(mm) 2-8 2-8 2-8 2-8 2-10 2-10 2-10
Processing capacity(t/h) 5-10 10-20 15-30 20-40 30-50 40-70 60-110
Power Models Y132M-6 Y180L-6 Y200L-4 Y225M-4 Y250M-4 Y315M-6 Y315L-6
Motor power(kw) 5.5×2 15×2 30×2 45×2 55×2 75×2 110×2

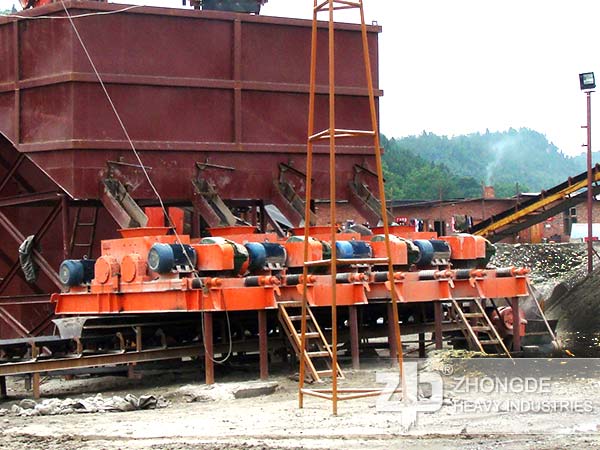

RELATED CASE
