Symons Cone Crusher

Symons Cone Crusher

Reference Price:

Get Latest Price Reference Price
  • Production Capacity
    27-1814 t/h

  • Max Feeding Size

  • More than 200 kinds of materials

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

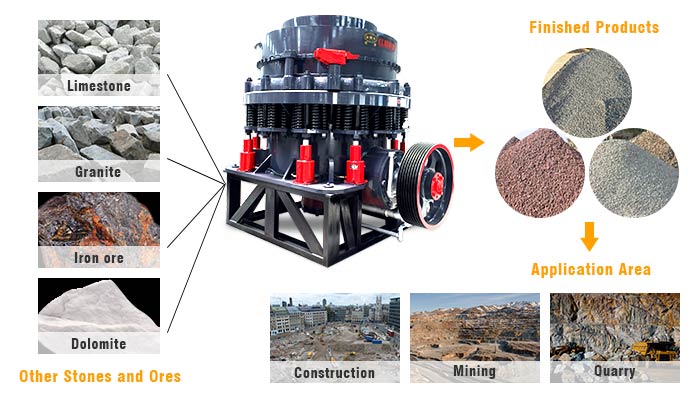

Processing Materials: stone, gravel, granite, basalt, iron ore, limestone, quartz, diabase, gold ore, copper ore, and etc.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

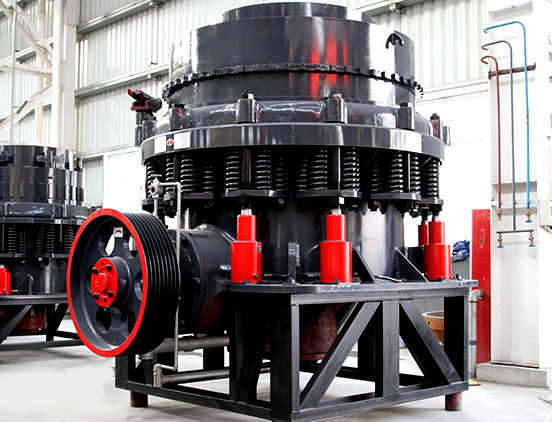

Introduction of Symons Cone Crusher

1.Symons cone crusher,also known as short head cone crusher and standard cone crusher, is widely used to crush the stones and ores with medium hardness and high hardness such as basalt, granite, limestone, gravel, quartz, iron ore, copper ore, gold ore and other minerals in mining, construction, road building,chemical and other fields.

2.The popular Symons cone crusher model is 4.25(4 1/4) symons crusher, namely our PSG 1300 model3 ft symons cone crusher (PSG 900 model), 7 ft symons cone crusher(PSG 2100 model)-reference to the following technical data. We have the specific symons crusher model you need.

3.It adopts lubrication grease sealing system,which avoids the clogging defects and the mix of water and oil.The overload protection device of spring safety system guarantee the service life of the machine.

4.The hydraulic chamber-cleaning system in medium and large sized crushers reduces the stop time of the machine. Each model has kinds of chambers so that the customers can choose the proper type to meet your needs.

5.According to the chamber type, Symons cone crusher includes standard type and short head type. Generally, the standard type has larger feeding size and discharging size,it is suitable for primary and medium crushing;while the short head type with sharpe cone is suitable for medium and fine crushing of the materials.We will provide suggestions for you to choose the proper type according to your needs and requirements.

Advantages of Symons Cone Crusher

1.High Production Efficiency

It adopts modular design, achieve the change among primary, secondary and fine crushing of materials by adjusting the chamber type, improving the production efficiency.

2.High Automatic Level

It adopts a set of external lubrication system that includes oil pump,oil tank and pipeline.If the oil temperature is too high or the oil flow rate is too slow, the crusher will shut down automatically.

3.Easy to Adjust Discharging Size

The hydraulic adjustment structure make it easy to adjust the discharging size.

4.Unique Structure,Long Service Life

High sealing performance,downtime is greatly reduced by insurance device

Technical Data

Type Model Diameter
of large
end of
Range of
size of the
open edge
the min.
PSG 900 0910 914 (3′) 9-22 102 85 45-91 6P 75 9980
0917 13-38 175 150 59-163
0904 3-13 41 35 27-90
0906 3-16 76 65 27-100
PSG 1300 1313 1295 (4¼′) 13-31 137 115 109-181 6P 160 22460
1321 16-38 210 178 132-253
1324 19-51 241 205 172-349
1306 3-16 64 54 36-163
1308 6-16 89 76 82-163
1310 8-25 105 89 109-227
PSG 1600 1620 1676 (5½′) 16-38 209 178 181-327 6P 250 43270
1624 22-51 241 205 258-417
1626 25-64 269 228 299-635
1607 5-13 70 60 90-209
1608 6-19 89 76 136-281
1613 10-25 133 113 190-336
