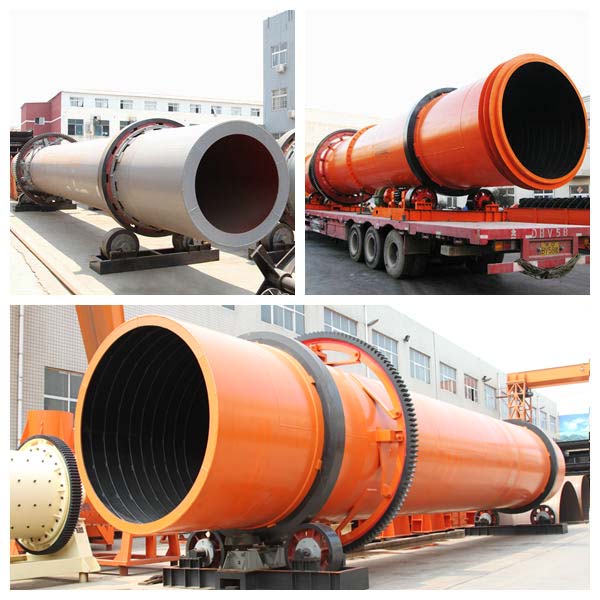

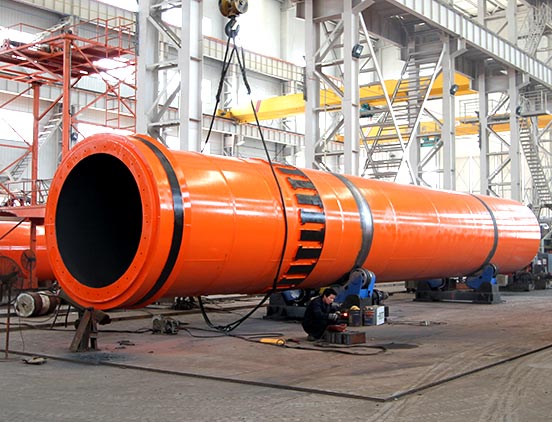

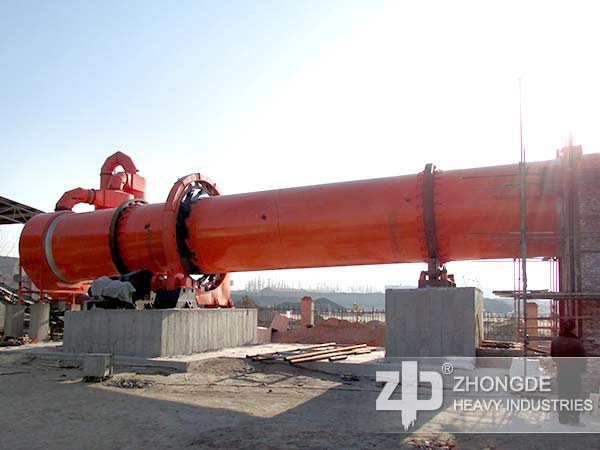

Coal Slime Rotary Dryer Machine

Coal Slime Rotary Dryer Machine

Reference Price:

Get Latest Price Reference Price
  • Production Capacity
    1.9-76t/h

Production Capacity 1.9-76t/h

Processing Materials: coal slime, fly ash, coal ash,etc.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

Brief Introduction of Coal Slime Dryer

1.Slime itself has high humidity, high adhesion. In view of this feature, coal slime dryer adopts a unique device to break up the bonded coal slime for drying, which enlarges the contact area of slime with hot air and makes heat utilization get greatly improved.

2.According to different needs of users, the inner of the rotary cylinder can be equipped with different device, such as, a layer of refractory insulation, a door ring, screw lifting boards, etc. In the drying process, the screw lifting boards can threw wet materials to a certain height to avoid materials bonding together or on the inner wall of rotary cylinder, improving the drying effect and efficiency.

3. Therefore, the design and distribution of the lifting boards directly affect the drying effect. The welding quality of the lifting boards determines their service life, and indirectly affects the long-term drying effect!

Advantages of Coal Slime Dryer

1. Reasonable structure, high output, and low energy consumption.

2. Strong overload resistance, and high processing capacity.

3. New internal structure, good material cleaning and thermal conduction effects.

4. Solid polished and stainless steel cylinder interior wall, not damage to material.

5. New material feeding and discharging device, consistent, and no jam phenomena.

Technical Data

Specification
(Dia.*Length)
Shell Cubage
(m³)
Production Capacity
(t/h)
Installation Obliquity
(%)
Highnest Inlet Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.09.01.9-2.43-5700-8007.59
Φ1.2×1011.32.4-3.03-5700-8007.511
Φ1.5×1221.24.5-5.73-5700-8001518.5
Φ1.5×1424.75.3-6.63-5700-8001519.7
Φ1.5×1526.55.7-7.13-5700-8001520.5
Φ1.8×1230.56.5-8.13-5700-80018.521.5
Φ1.8×1435.67.6-9.53-5700-80018.523
Φ2.2×1245.69.7-12.23-5700-8002233.5
Φ2.2×1453.211.4-14.23-5700-8002236
Φ2.2×1660.813.0-16.23-5700-8002238
Φ2.4×1463.313.5-16.93-5700-8003745
Φ2.4×1881.417.4-21.73-5700-8003749
Φ2.4×2090.419.3-24.13-5700-8004554
Φ2.4×2299.521.2-26.53-5700-8004558
Φ2.6×24127.427.2-34.03-5700-8005573
Φ3.0×20141.330.1-37.73-5700-8007585
Φ3.0×25176.637.7-47.13-5700-8007595
Φ3.2×2520142.9-53.63-5700-80090110
Φ3.6×2828560.8-76.03-5700-800160135
