Jaw Crusher

Jaw Crusher

Reference Price:

Get Latest Price Reference Price
  • Product capacity
    5-2200t/h

  • Max Feeding Size
    125-1500mm

  • Output Size
    10-400mm

Product capacity 5-2200t/h

Max Feeding Size 125-1500mm

Output Size 10-400mm

Processing Material: sandstone,rocks,pebble,limestone,calcite, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,basalt and other minerals.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

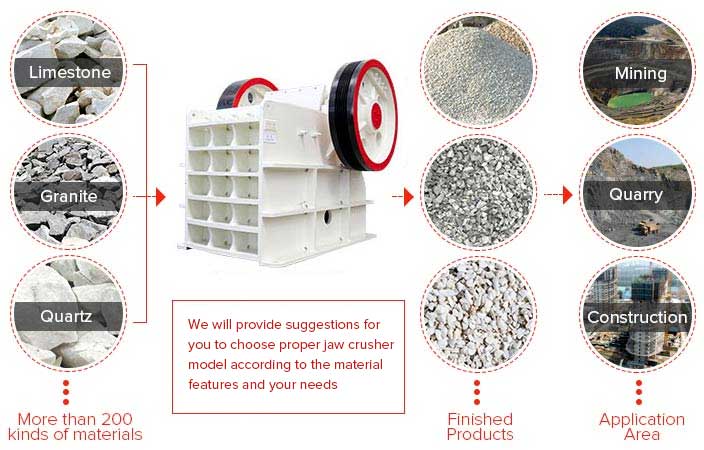

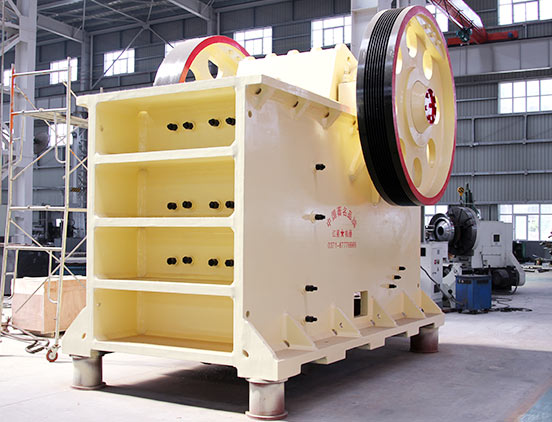

Introduction of Jaw Crusher

1.Jaw Crusher is one of most widely used mining crushers,it is widely used to crush various kinds of stones and mineral ores ,such as stone, gravel, limestone, basalt, quartz, iron ore, coal, concrete, aggregate, calcite, slag and other kinds of metal-ores and non-metal ores in mining, construction, road, railway,chemical industry,etc.

jaw crusher

2.Jaw crusher can be used for primary/secondary/fine crushing of the materials according to its crushing features and your needs.

3.There are PE and PEX series jaw crusher for sale. Among the full specifications, PE400×600, PE600×900, PE900×1200 are the hot sale ones. You can have a choice according to your needs from the small jaw crusher or the large jaw crusher.

4.As one of the best selling stone crushers,it has been exported to over 90 countries such as Indonesia, Malaysia, Kenya, Tanzania, Ethiopia, Nigeria, South Africa, Egypt,etc.It has win the favor of the customers.



Advantages of Jaw Crusher

1.Large production capacity (1-2200t/h),full specifications for sale

2.High crushing ratio and crushing strength.

3.Adjustable discharging size, excellent final product shape.

4.Deep-chamber crushing without dead zone, high crushing efficiency and energy saving.

5.Unique structure,sealing guarantee,reliable operation,long service life.

6.On-site guidance,full tech and service support.


Jaw Crusher Price

Jaw crusher price depends on different crusher models. As the leading mining crusher manufacturer with almost 40 year history in China, we will provide maximum preferential price and discount for you. Welcome to visit our company and factory.

Technical Data

  • PE/PEX Jaw Crusher
  • HD German Jaw Crusher
  • CJ Series Jaw Crusher
Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-64 275 6P 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P 160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P 280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P 22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P 55 15.6 2720×1950×1600
Model Feeding size(mm) Maximum feeding size (mm) Range of discharging port(mm) Handling capacity(t/h) Power(kw) Width×Length×Height
(mm)
HD72(57) 460×720 425 45-100 50-120 6P 55 1566×1965×1630
HD86(69) 580×860 500 50-150 60-210 8P 75 1722×1943×1810
HD98(751) 680×980 630 75-175 110-330 8P 110 1960×2470×2180
HD110(912) 850×1100 750 100-200 230-450 6P 132 2381×2775×2500
HD125 950×1250 900 125-225 280-750 8P 160 2600×3320×3120
Model Feed size L×W(mm) Max.Feeding size(mm) Range of discharging port(mm) Handling capacity(t/h) Power(kw)
CJ96 930×580 480 60-175 120-450 90
CJ106 1060×700 560 70-200 155-580 110
CJ125 1250×950 760 100-250 290-840 160
CJ150 1400×1200 960 125-250 340-950 200
CJ160 1600×1200 960 150-300 430-1260 250
CJ200 2000×1500 1200 175-300 760-1590 400
CJ1511 1500×1070 850 125-300 385-1080 200
CJ1513 1500×1300 1040 150-300 480-1160 200
