Raymond Mill

Raymond Mill

Reference Price:

Get Latest Price Reference Price
  • Feeding Size
    ≤30mm

  • Output Size
    0.044-0.173mm

  • More than 200 kinds of materials

Feeding Size ≤30mm

Output Size 0.044-0.173mm

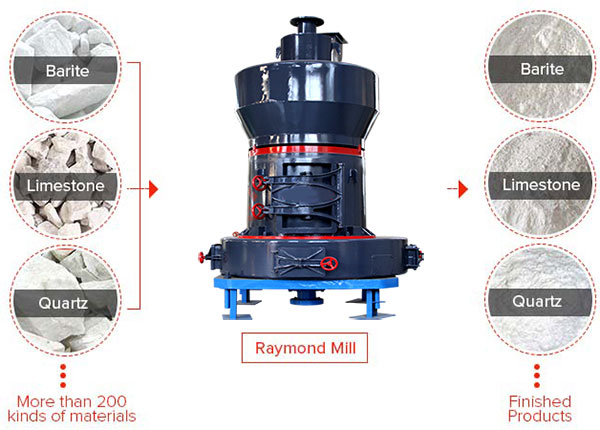

More than 200 kinds of materials

Processing Material: stone,rocks,pebble,limestone,calcite, granite, quartz, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,basalt and other minerals.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

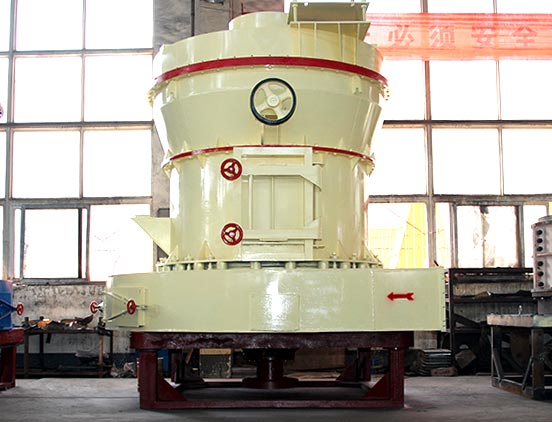

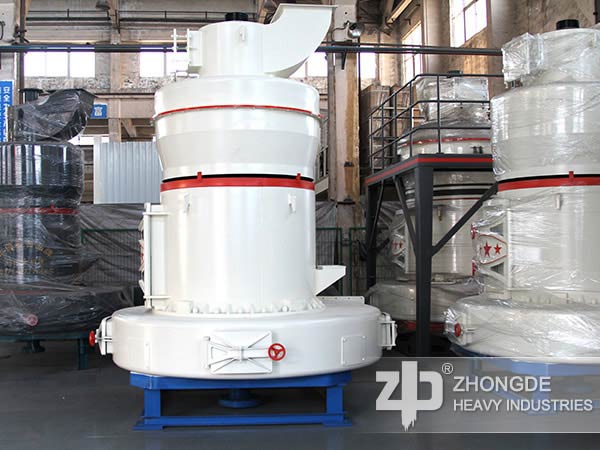

Introduction of Raymond Mill

1.Raymond mill is used for the grinding of 280 kinds of non-flammable and non-explosive materials whose Moh's hardness is less than 9.3 level and humidity less than 6% in mining,chemical,building materials industries.

2.The commonly seen processing materials include barite, calcite, feldspar, marble, limestone, dolomite, fluorite, lime, active carbon, bentonite, kaoline, cement, gypsum, plaster,glass, heat insulating materials,etc.

3.The particle size of the final product can be adjusted from 80-325 mesh at random.

4.The Raymond mill produced by our company has full models for choice,you can according to your needs to choose the proper one.

5.If you need higher fineness of final product,you can choose micro powder mill and three-ring and medium speed micro powder mill.

Advantages of Raymond Mill

1.Strong adaptability to materials,wide application

2.Adjustable fineness of final product

3.Stable rotating and reliable operation.The transmission device adopts sealed gear box and belt wheel design,guaranteeing the reliable operation.

4.High throughput rate.Compared with other grinding mills,its throughput rate can be reached 99%,much higher.

5.Long service life.Quick-wear parts are made of high manganese steel.

Technical Data

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.173-0.044 0.173-0.044
ShiZD Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central ShaZD(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
Model Feeding Size(mm) Output Size(mm)
4525 ≤30 0.173-0.044
4119 ≤25 0.173-0.044

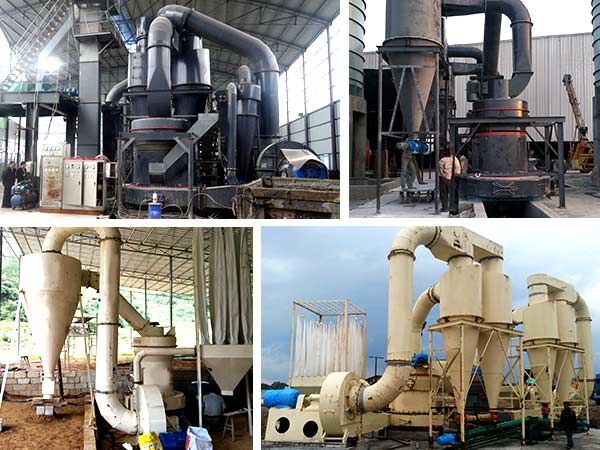

RELATED CASE
