Sand Making Machine

Sand Making Machine

Reference Price:

Get Latest Price Reference Price
  • Production Capacity
    12-725t/h

  • Max Feeding Size
    25-50mm

  • Environmental Friendly

Production Capacity 12-725t/h

Max Feeding Size 25-50mm

Environmental Friendly

Processing Material: rock, aggregate, gravel, granite, limestone, quartz, basalt, cobbble, dolomite, calcite, etc.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

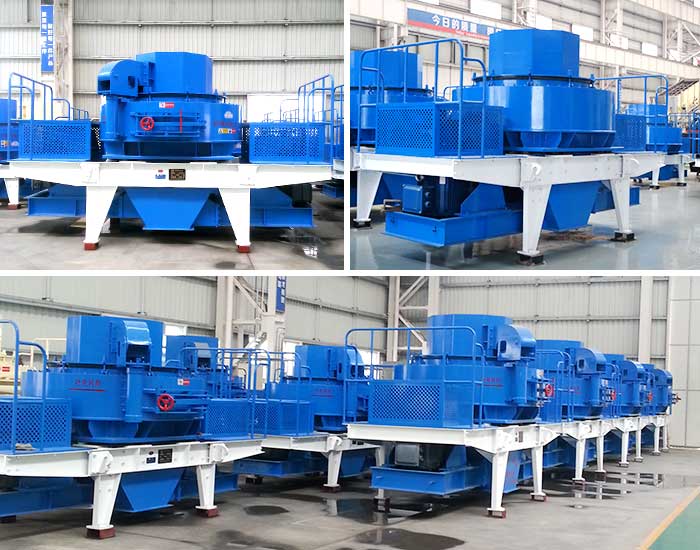

Introduction of Sand Making Machine

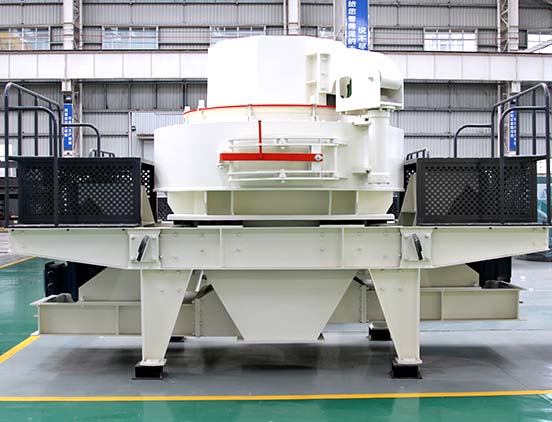

1. Sand making machine is also known as vertical shaft impact crusher.

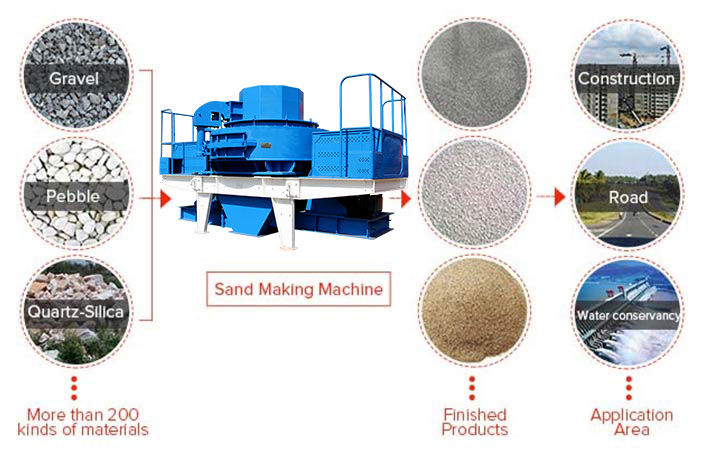

2. It is the key equipment for artificial sand making. It is widely used to process quartz, sandstone, pebble, limestone, basalt and other stones into sand for building,highway,construction,concrete batching plant,etc.

3. It adopts advanced technology and it is suitable for the fine crushing and shaping of stones of medium and high hardness.

4. Besides vsi sand making machine, we also have Tk serie sand making machine which is the new product produced by our company, it combines the advantages of the previous sand makers, greatly improving he production capacity and saving costs.

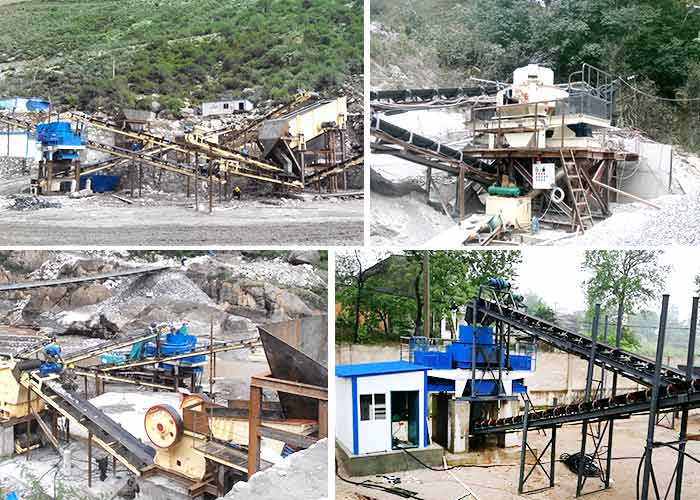

5.We also provide complete sand making production line, which includes sand making machine, sand wahing machine, screen, vibrating feeder, belt conveyor,etc.

Advantages of Sand Making Machine

1, Large production capacity, excellent particle shape and particle size.

2, Reliable and stable operation, easy maintenance.

3. Long service life, durable spare parts.

4. Energy saving and less dust.

5. Apart from single sand making machine, we also provide complete sand making line for you.

Artificial Sand Making Machine Price

Because of different product specifications, sand making machine price is also different. As the leading mining crusher manufacturer with almost 40 year history in China, we will provide the maximum preferential factory price and discount for you.Welcome to visit our company and factory.

Technical Data

  • Sand Making Machine
  • VSI Sand Maker
  • HVI Sand Making Machine
Model
specification
Max.feeding
size
(mm)
Power
(kw)
Rotation
speed of
impeller
(r/min)
Capacity
(t/h)
Overall
dimension
(L×W×H)
(mm)
HX-06 35 2P 37-55KW 2000-3000 12-30 2500×1620×2600
HX-07 45 4P 55-75KW 1500-2500 25-55 2700×1760×2800
HX-09 50 4P 110-150KW 1200-2000 55-100 3900×2000×3070
HX-10 60 4P 150-180KW 1000-1700 100-160 4600×2350×3450
Model HXVSI-7611 HXVSI-8518 HXVSI-9526 HXVSI-1140 HXVSI-1145 HXVSI-1150
Capacity
(t/h)
Feed both
at center
and sides
120-180 200-260 300-380 450-520 500-610 520-650
Feed at
center
60-90 100-130 150-190 225-260 245-355 255-365
Max.feeding
size(mm)
Soft
material
35 40 45 50 50 50
Hard
material
30 35 40 40 45 45
Rotation
speed
(r/min)
1700-1890 1520-1690 1360-1510 1180-1310 1150-1300 1150-1300
Double Motor
power(kw)
4P 110 4P 180 4P 264 4P 400 4P 400 4P 500
Overall dimension
(L×W×H)(mm)
3700×2150×2100 4140×2280×2425 4560×2447×2778 5100×2700×3300 5500×2700×3300 5500×2700×3300
Power supply 380V 50HZ
Lubrication
station
Double
motor
power of
oil pump
2×0.31Kw
Safety
assuance
Double oil pumps assure enough oil supply:automatic
switch off with no oil stream or pressure,water cooling
in summer,motor heating stare-up in winter.
Overall
dimension
(L×W×H)
(mm)
820×520×1270
Power of oil
tank heater
2KW
Model Sand Shaping Sand Making Sand Shaping Sand Making Motor Power(kw)
Max.Feeding Size (mm) Throughput(t/h)
HVI 0815 <30 <35 70-140 130-230 2×75
HVI 0818 <30 <35 80-190 165-283 2×90
HVI 0922 <35 <40 105-145 220-330 2×110
HVI 0926 <35 <40 120-190 240-380 2×132
HVI 1032 <40 <45 181-278 246-356 2×160
HVI 1040 <40 <45 262-284 350-440 2×200
HVI 1250 <45 <50 345-371 414-540 2×250
HVI 1263 <50 <55 453-498 521-585 2×315
