Hydraulic Cone Crusher

Hydraulic Cone Crusher

Reference Price:

Get Latest Price Reference Price
  • Production capacity
    36-1814t/h

  • Max Iutput Size
    35-314mm

  • More than 200 kinds of materials

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

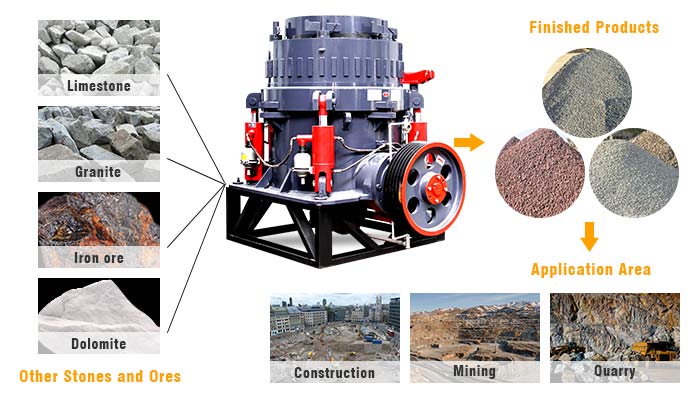

Processing Material: stone,rocks,pebble,limestone,calcite, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,basalt and other minerals.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

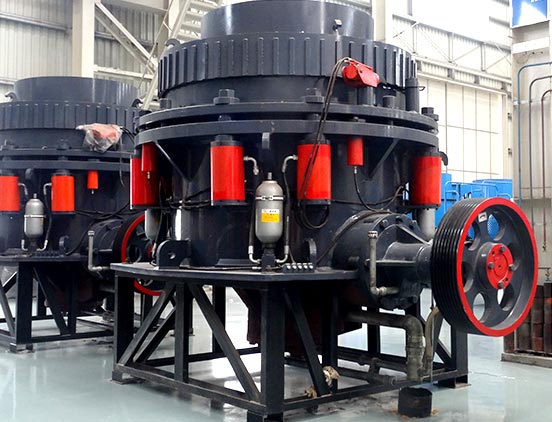

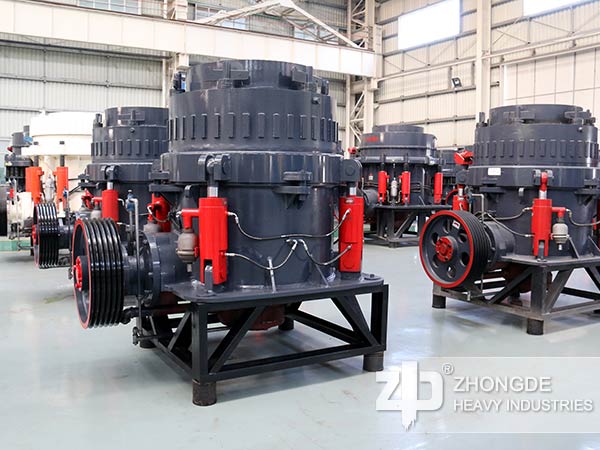

Introduction of Hydraulic Cone Crusher

1.Full hydraulic cone crusher is a new kind of cone crusher developed by introducing advanced idea and optimized design, which combines the features of single-cylinder cone crusher and PYF series cone crusher.

2.Due to the optimal crushing frequency and eccentric distance, the particles whose granularity is less than closed discharging size can be up to 80%, which can improve the subsequent handling capacity and reduce the comprehensive energy consumption.

3.Perfect combination of high performance crushing chamber and high crushing efficiency makes the production efficiency higher.

4.Laminated crushing principle makes the particle shape of final product be cubic shape,greatly reducing the needle sheet material.

Advantages of Hydraulic Cone Crusher

1.Large processing capacity 27-1814t/h,full models for sale.

2.Full hydraulic operation realize high automation,reliable performance and long service life.

3.Stable operation,optimized structure,fault-free operation ratio can surpass 85%.

4,Hydraulic protection,easy adjustment and maintenance.

Technical Data

Model Cavity
Diameter of
large end of
crushing cone (mm)

Adjusting Range of
Discharge Opening (mm)

Feed Opening Size
of the Opening
Edge when Recommending
Min. Discharging Gate Opening (mm)

Max.feeding size
(mm)

Processing capacity
(t/h)

Main motor power
(kw)

Machine Weight
(t)
ZDGYS 300 C1 910 13~38 175 150 81~180 6P 90 10
C2 9~22 102 85 60~180
F1 3~16 76 65 36~145
F2 3~13 41 35 36~130
ZDGYS 400 C1 1200 19~51 241 205 207~400 6P 200 20
C2 16~38 210 178 162~350
C3 13~31 137 115 126~310
F1 8~25 105 89 109~230
F2 6~16 89 76 82~230
F3 3~16 64 54 40~230
ZDGYS 500 C1 1600 25~64 269 228 280~650 6P 280 40
C2 22~51 241 205 258~450
C3 16~38 209 178 180~410
F1 10~25 133 113 162~355
F2 6~19 89 76 136~330
F3 5~13 70 60 90~300
