Crawler Mobile Crusher

Crawler Mobile Crusher

Reference Price:

Get Latest Price Reference Price
  • Production Capacity
    50-650t/h

  • More than 200 kinds of materials

  • Environmental Friendly

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

Processing Material: stone,rocks,pebble,limestone,calcite, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,basalt and other minerals.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

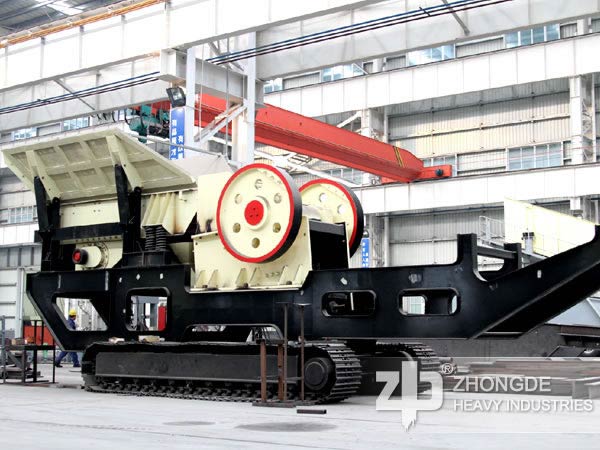

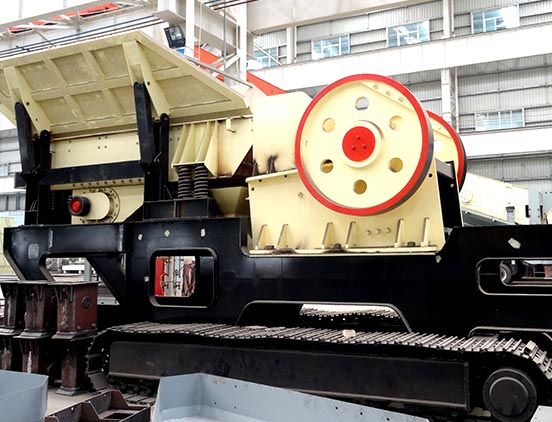

Introduction of Crawler Mobile Crusher/Track Mounted Crusher

1.Crawler mobile crusher, also known as track mounted crusher/trailer mounted crusher, can be used for primary, medium and fine crushing of the materials in concrete and construction waste recycling, processing of stones and mineral ores in mining, quarry, coal industry and Other industries. It is widely used to process limestone, granite, marble, basalt, iron ore, river stone, shale, coal, construction waste and other kinds of minerals.

2.Crawler mobile crusher ( track mounted crusher/trailer mounted crusher) integrates crusher machine and screen equipment on one machine, but It can realize flexible product configuration. About crawler mobile crusher, we can provide crawler jaw crusher, crawler impact crusher and crawler cone crusher for you with best price.

Advantages of Crawler Mobile Crusher/Track Mounted Crusher

1.High production capacity, it can be up to 70-650 t/h.

2.The chassis adopts crawler rigid ship form structure, which makes high flexibility,easy to move on any production sites.

3.Flexible product configuration to meet your requirements.

4.Saving installation time,saving transportation costs 25%.

5.Strong adaptability to materials and production environment.

Technical Data

Items ZD938E69 ZD935PF1214 ZD1142HD98 ZD1142PF1315 ZD1142HD110
Vibrating Feeder ZSW-950×3800 ZSW-950×3800 ZSW-110×4200 ZSW-110×4200 ZSW-110×4200
Jaw Crusher PE600×900 PF1214 HD98 PF1315 HD110
Main belt conveyor B800×8.5M B800×8.5M B1000×9M B1000×9M B1000×9M
Discharging height of main belt conveyor(mm) 3200 3200 3500 3500 3500
Side-opening Belt conveyor(Optional) B450×3M B450×3.2M B500×3.5M B500×3.5M B500×3.5M
Discharging height side-opening belt conveyor(mm) 2800 2800 3100 3000 3100
Power of genset(kw) 180 250 200 300 250
Transportation length(mm) 12000 12000 13600 13600 14600
Transportation width(mm) 3100 3100 3100 3100 3300
Transportation height(mm) 3650 3650 4500 4500 5000
Weight(mm) 43.5 50 59 59 67
Working length(mm) 12100 12100 13500 13500 15200
Working width(mm) 3100 3100 3100 3100 3300
Working height(mm) 4100 4100 5100 4800 5500
