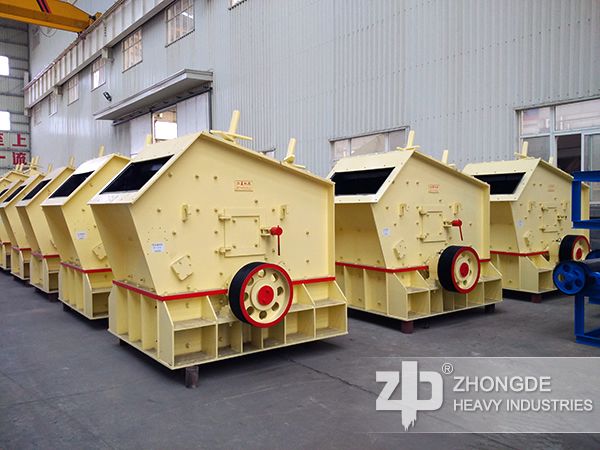

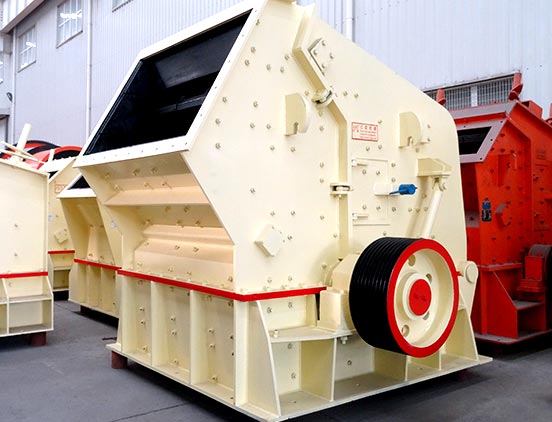

Features of PF Impact Crusher (Horizontal Shaft Impact Crusher)

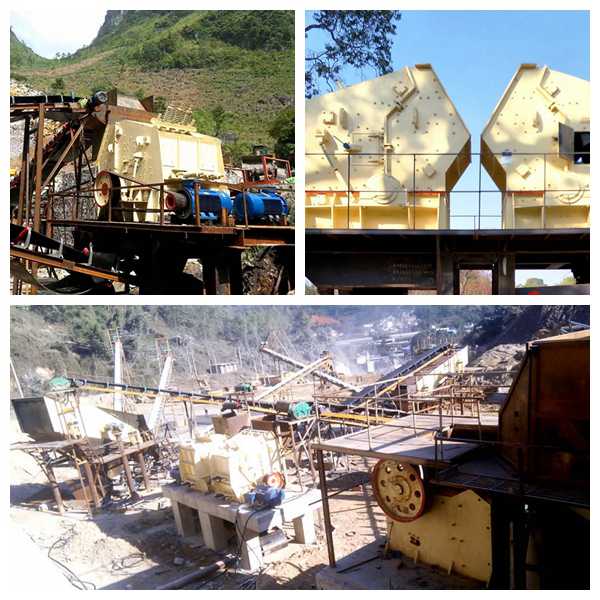

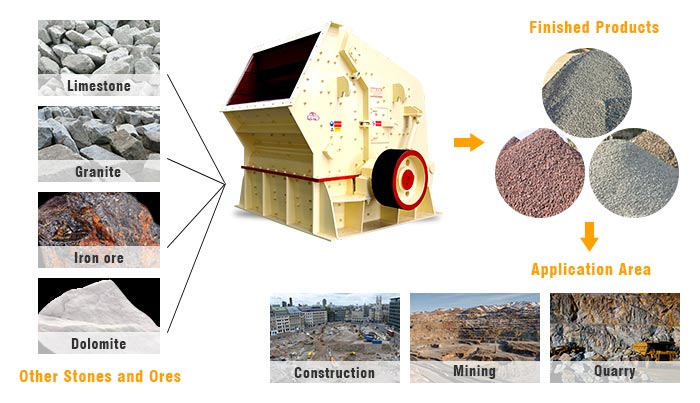

1. Impact crusher, also known as PF impact crusher and horizontal shaft impact crusher, is mainly used for the primary, secondary and fine crushing of stones and ores whose compression resistance is no more than 350mpa, such as limestone, granite, concrete, pebble, gravel, quartz, iron ore, marble, coal and other kinds of materials in mining, construction, road, railway, cement, building industries.
2.Impact crusher is produced by adopting advanced technology and it is featured with unique structure, various crushing specifications and adjustable discharging size.
3. The most significant advantages of impact crusher is the excellent product shape of the finished product,which is cube shape without tension and cracks. It is most popular in construction and building industry.
4.We also have vertical shaft impact crusher for sale,it is used for artificial sand making.
Advantages of PF Impact Crusher (Horizontal Shaft Impact Crusher)
1, Big feeding inlet, high crushing efficiency.
2, Excellent and uniform particle shape and particle size.
3, Compact structure,realible oparation.
4, High comprehensive benefits,low costs.
5,High chromiun hammer,large impact force, long service life.
Technical Data
- PF Series Impact Crusher
- HD German Impact Crusher
- CI Series Impact Crusher
Model |
Specifications (mm) |
Feed Opening (mm) |
Max.Feeding Size (mm) |
Capacity (t/h) |
Power (kw) |
Dimensions(L×W×H) (mm) |
PF-1007 |
Φ1000×700 |
400×730 |
300 |
30-70 |
4P 37-45 |
2330×1660×2300 |
PF-1010 |
Φ1000×1050 |
400×1080 |
350 |
50-90 |
4P 45-55 |
2370×1700×2390 |
PF-1210 |
Φ1250×1050 |
400×1080 |
350 |
70-130 |
6P 110 |
2680×2160×2800 |
PF-1214 |
Φ1250×1400 |
400×1430 |
350 |
80-180 |
6P 132 |
2650×2460×2800 |
PF-1315 |
Φ1320×1500 |
860×1520 |
500 |
100-280 |
6P 200 |
3180×2720×3120 |
PF-1320 |
Φ1300×2000 |
993×2000 |
500 |
140-380 |
6P 250 |
3220×3100×3120 |
PF-1520 |
Φ1500×2000 |
830×2040 |
700 |
200-550 |
4P 315-400 |
3959×3564×3330 |
PF-1820 |
Φ1800×2000 |
1260×2040 |
800 |
300-800 |
6P 630-710 |
4400×3866×4009 |
Model |
Rotor(mm) |
The Maximum Feeding Size(mm) |
Capacity(t/h) |
Motor power(kw) |
Overall dimension(L×W×H)(mm) |
Weight(kg) |
-150MPa |
-350MPa |
HD1110 |
Φ1040×1000 |
400 |
200 |
90~190 |
4P 90-132 |
3000×2360×2385 |
15875 |
HD1315 |
Φ1300×1500 |
700 |
300 |
180~280 |
4P 200-270 |
3735×3156×3055 |
29600 |
HD1520 |
Φ1500×2000 |
1000 |
400 |
350~500 |
4P 400-500 |
4310×3330×3660 |
42000 |
HD1625 |
Φ1650×2500 |
1300 |
500 |
500~670 |
4P 500-670 |
5540×4330×4600 |
66000 |
Model |
Maximum Feeding Size (mm) |
Power (kw) |
Capacity (t/h) |
Dimensions(L×W×H)(mm) |
CI1110 |
250 |
160 |
60-210 |
2826×2087×2285 |
CI1213 |
300 |
200 |
80-280 |
2903×2530×2411 |
CI1316 |
300 |
250 |
100-350 |
3320×2770×2535 |
CI1521 |
350 |
2×(200-250) |
200-600 |
3450×3620×2770 |
Model |
Maximum Feeding Size (mm) |
Power (kw) |
Capacity (t/h) |
Dimensions(L×W×H)(mm) |
CI1313 |
600 |
200 |
100-480 |
2972×2560×2937 |
CI1415 |
600 |
250 |
120-600 |
2985×2790×3068 |
CI1620 |
800 |
2×(200-250) |
220-900 |
4261×3480×3780 |
CI2023 |
800 |
2×500 |
400-2000 |
5151×4424×4712 |
