HD German Impact Crusher

HD German Impact Crusher

Reference Price:

Get Latest Price Reference Price
  • Production capacity
    90-670 t/h

  • Feeding Size

  • More than 200 kinds of materials

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

Processing Material: pebbles, rocks, granite, basalt, gravel, granite, iron ore, limestone, quartz, diabase, marble, copper ore, etc.​

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

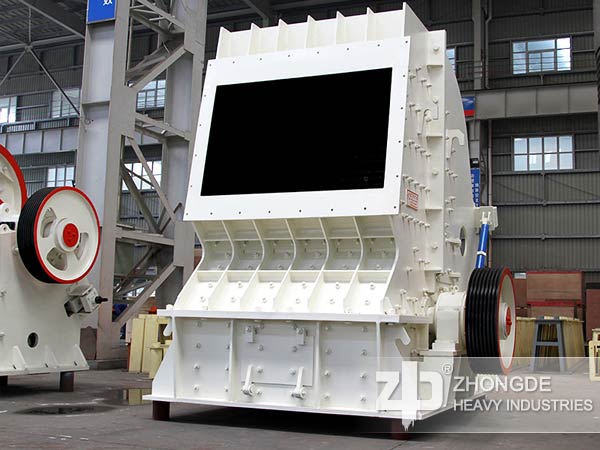

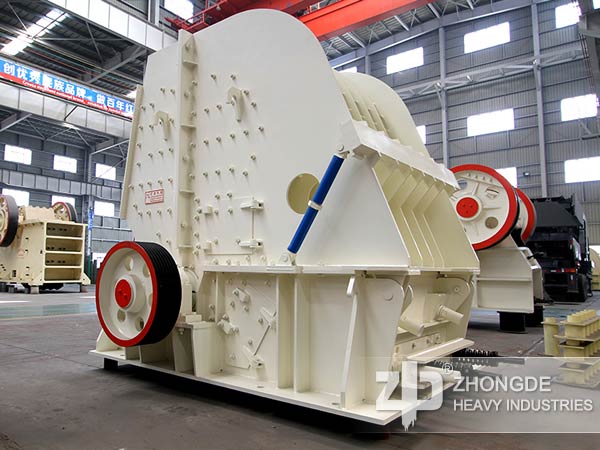

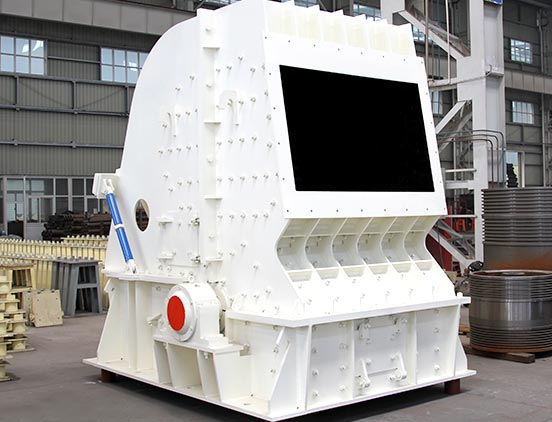

Introduction of HD German Impact Crusher

HD German impact crusher is a kind of large and medium sized crushing equipment used for stone crushing by impact force. It is widely used in building materials, metallurgy, mineral processing, chemical and other industries. It is particularly suitable for coarse, medium and fine crushing of brittle materials with medium hardness such as limestone, coal, sand, cement clinker, iron ore, aluminum ore, molybdenum ore and other materials. Due to its excellent crushing effect, it can replace jaw crusher, roll impact crusher and cone crusher in some small and medium sized factories.

Advantages of German Impact Crusher

1. High crushing efficiency. When the German impact crusher works, the unit power consumption is only l / 3 of jaw crusher. Therefore, it has high crushing efficiency, large production capacity and low energy consumption, etc.

2. High crushing ratio. Its crushing ratio can be up to 30-40, which is equal to that of coarse crushing and medium crushing impact crusher or combination of medium crushing impact crusher and fine crushing impact crusher. Therefore, the use of single machine can realize the effect of two sets of ordinary impact crusher, simplifying procedure and process.

Technical Data

Model Rotor(mm) The Maximum Feeding Size(mm) Capacity(t/h) Motor power(kw) Overall dimension(L×W×H)(mm) Weight(kg)
-150MPa -350MPa
HD1110 Φ1040×1000 400 200 90~190 4P 90-132 3000×2360×2385 15875
HD1315 Φ1300×1500 700 300 180~280 4P 200-270 3735×3156×3055 29600
HD1520 Φ1500×2000 1000 400 350~500 4P 400-500 4310×3330×3660 42000
HD1625 Φ1650×2500 1300 500 500~670 4P 500-670 5540×4330×4600 66000
