Production capacity
20-350m³/h
Feeding size
≦10mm
Environmental Friendly
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Materials: natural sand, artificial sand,river sand, etc
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

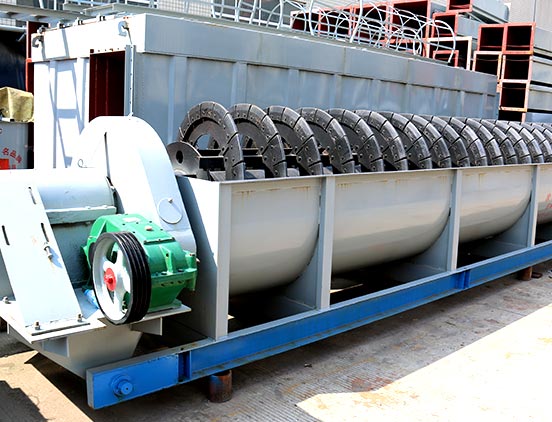

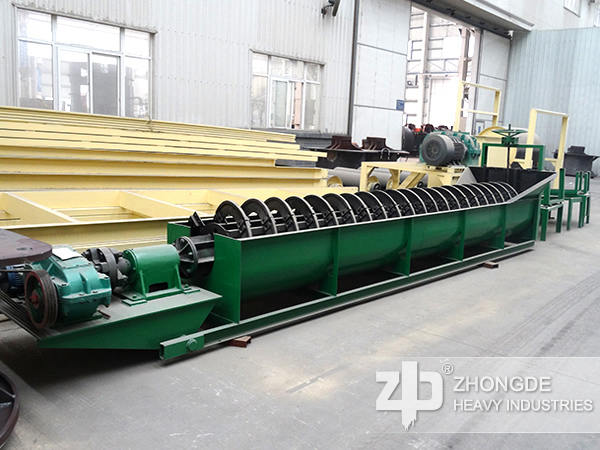

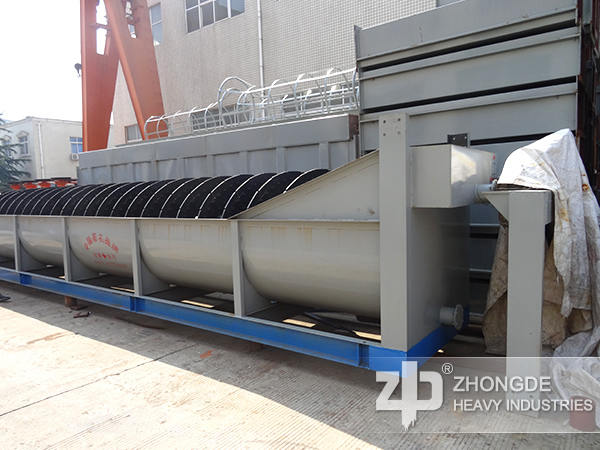

1.Screw Sand Washing Machine/screw sand washer is designed by my company for sand washing,grading and dehydration.It adopts novel seal structure, fully enclosed oil bath gear, and adjustable overflow weir plate, ensuring the machine efficient, durable, clean, and good dehydration effect.
2.Screw Sand Washing Machine is loved by the majority of customers, and has been successfully widely used in construction sites, gravel plants, hydropower stations, concrete dam site glass industry, and other places using sands.
1. Good washing effect Novel seal structure, fully enclosed oil bath gear, and adjustable overflow weir plate ensure the machine efficient, durable, clean, and good dehydration effect.
2. High washing and classified grade Professionally designed guide plate and adjustable long overflow weir plate, with optimized screw speed, ensure the washing and classified accuracy.
3. Good dehydration effect Optimal design of the drain gutter ensures to remove material moisture with maximum possibility.
4. Energy efficient Besides, it has advantages of reasonable structure, convenient maintenance, large capacity, small power consumption, and hiigh cleanliness.
| Model | Screw Diameter (mm) | Length of Tub (mm) | Feed Size (mm) | Spiral Speed ( r/min) | Water consumption (t/h) | Production Capacity (m3/h) | Motor Power (kw) | Dimensions (mm) | Weight (t) |
| LXS-515 | 515 | 6715 | ≦10 | 38 | 6-60 | 20 | 5.5 | 8100×2345×1450 | 4.5 |
| LXS-765 | 765 | 7620 | ≦10 | 26 | 9-63 | 75 | 11 | 8545×2650×1870 | 7.1 |
| LXS-915 | 915 | 7650 | ≦10 | 21 | 10-80 | 100 | 15 | 8545×2830×2360 | 8.2 |
| LXS-1115 | 1115 | 9782 | ≦10 | 17 | 20-150 | 175 | 18.5 | 11830×3048×2600 | 13.6 |
| 2LXS-915 | 915 | 7650 | ≦10 | 21 | 130-180 | 200 | 2×15 | 8545×3870×2360 | 14.9 |
| 2LXS-1115 | 1115 | 9782 | ≦10 | 17 | 60-300 | 350 | 2×18.5 | 11830×4170×2600 | 24 |
