Spiral Chute

Spiral Chute

Reference Price:

Get Latest Price Reference Price
  • Processing Capacity
    2-40t/h

  • Feeding Size
    0.03-1mm

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

Processing Materials:iron ore, copper ore, gold ore, tungsten ore, ilmenite, chromite, pyrite, zircon, etc.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

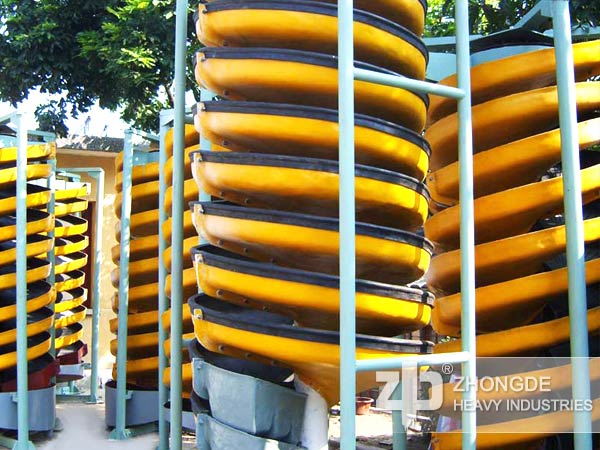

Overview of Spiral Chute/Spiral Concentrator

1.Spiral chute/spiral concentrator is mainly composed of ore feeding chute, spiral flute, product interception slot, ore bucket and other parts.

2.Spiral chute/spiral concentrator is a kind of gravity mineral separation equipment, which is widely used to sort the mineral ores whose particle size is 0.3-0.02 mm, such as iron, tin, tungsten, tantalum, niobium, gold, monazite, rutile, zircon and other metals and non-metallic minerals with sufficient proportion.

2.It is the ideal equipment for ore beneficiation, it hase been exported in Zinbabwe, Tanzania, Ethiopia, Indonesia,etc.

Advantages of Spiral Chute/Spiral Concentrator

1.High recovery rate and high efficiency.

2.Reliable running and low noise.

3.Moisture resistance and light in weight.

4.Low operating cost while long service life.

5.Reasonable structure and small occupied area.

Technical Data

ModelDL2000DL1500LL1200LL900
External diameter
(mm)
200015001200900
Inner diameter
(mm)
360250220180
Screw distance
(mm)
1200900-675720/540540/360
Ratio
(scroll distance/diameter)
0.60.60.6/0.450.6/0.4
Transverse obliquity
( °)
9999
Star2-42-42-42-4
Turn3.544/54/5
Feeding size
(mm)
0.4-10.03-10.03-0.30.03-0.3
Feeding thickness
(%)
20-4530-4530-5030-50
Processing capacity
(t/h)
15-408-164-62-3
Area
( m² )
5.73.321.2
Height
(mm)
6.6-85.55.233.2

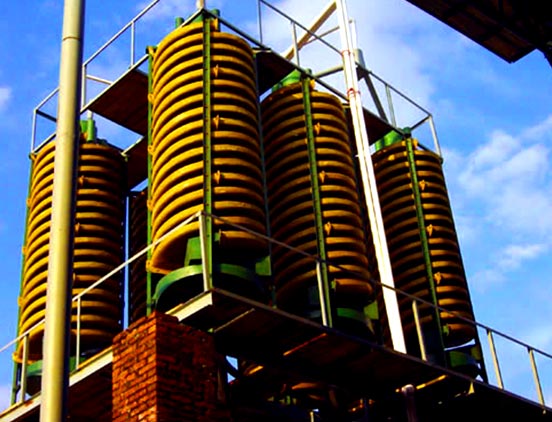

RELATED CASE
