Reference Price:
Get Latest Price
Production Capacity
40-910t/h
Max Feeding Size
425-950mm
Environmental Friendly
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Material: stone, limestone, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,basalt and other minerals.
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

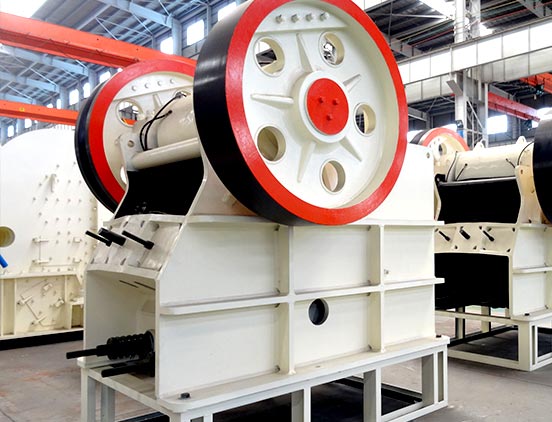

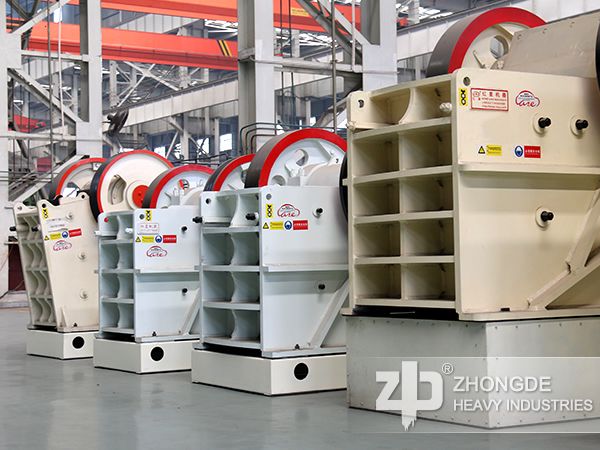

With the perfect optimization of crushing cavity and working parameters, HD jaw crusher stands out in terms of a higher capacity and superior product quality, and wider availability as well. It can be used in various industries, such as metal and non-metallic ores, construction, sand and stone crushing, cement and metallurgy, especially doing well in crushing hard materials, such as granite, slag, iron ore, etc.
1.Advanced technology makes its long service life and higher durability.
2.Optimized structural design, large production capacity.
3.Strong adaptability to materials,better crushing efficiency.
4.Centralized lubricating system makes it easy for maintenance, saving costs and reducing downtime.
| Model | Feeding size(mm) | Maximum feeding size （mm） | Range of discharging port（mm） | Handling capacity(t/h) | Power(kw) | Width×Length×Height （mm） |
| HD72(57) | 460×720 | 425 | 45-100 | 50-120 | 6P 55 | 1566×1965×1630 |
| HD86(69) | 580×860 | 500 | 50-150 | 60-210 | 8P 75 | 1722×1943×1810 |
| HD98(751) | 680×980 | 630 | 75-175 | 110-330 | 8P 110 | 1960×2470×2180 |
| HD110(912) | 850×1100 | 750 | 100-200 | 230-450 | 6P 132 | 2381×2775×2500 |
| HD125 | 950×1250 | 900 | 125-225 | 280-750 | 8P 160 | 2600×3320×3120 |
Tell us your need such as capacity, materials, input and output size, we send the quote to you asap
Complete the form or email us (sales@zdzg.com) , we will reply to you within 24 hours.
Better to try nowWaiting For Your Inquiry
You can fill in the form or inquiry online to contact us
We will provide you product details, price,etc
Complete and full after-sales service for you
