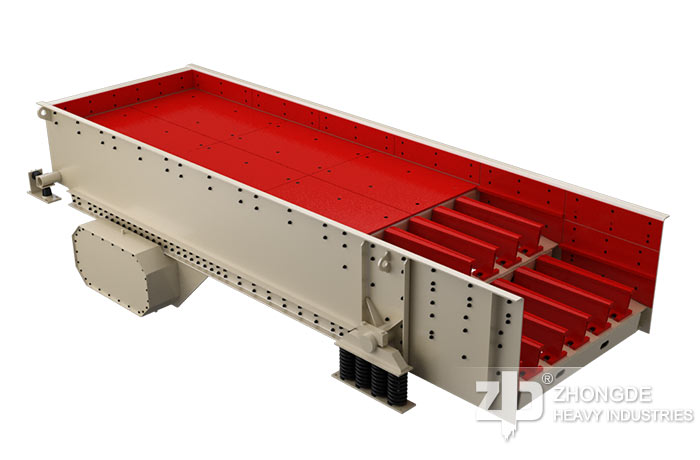

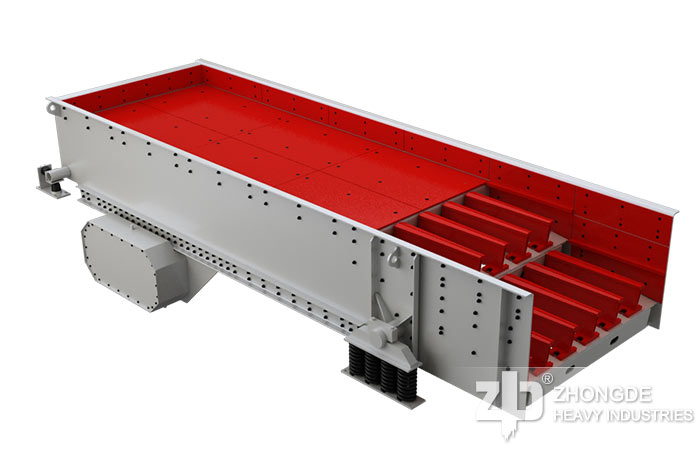

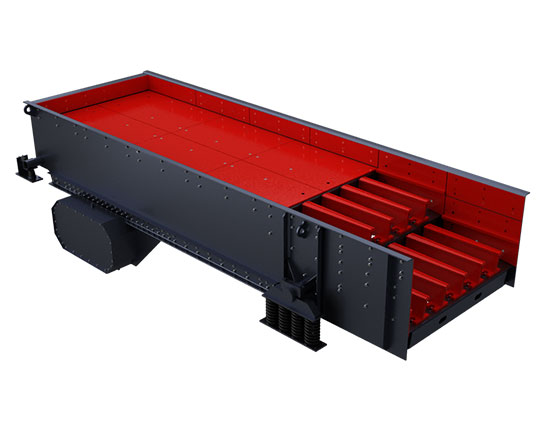

HSF Series Vibrating Feeder

HSF Series Vibrating Feeder

Reference Price:

Get Latest Price Reference Price
  • Production Capacity
    400-1700t/h

  • Feeding Size
    700-1500mm

  • More than 200 kinds of materials

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

Processing Material: stone,rocks,pebble,limestone,calcite, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,basalt and other minerals.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

Introduction of HSF Series Vibrating Feeder

1.HSF series bar vibrating feeder is designed according to the heavy duty condition, which is suitable for feeding to the primary crusher equipment with medium and large size in mining, quarry, construction, road and other industries.

2.It is widely used to feeding granite, limestone, basalt, boulder, feldspar, iron ore, gold ore and other kinds of stones and ores.

Performance of HSF Series Vibrating Feeder

1.Optimized structure with strong impact resistance, suitable for different installation angles. Modular design, the wearing parts can be exchanged among various models.

2.Adjustable gap between the bars, the material distribution is more even. The second layer sorting screen can be selected, improve the utilization rate of raw materials.

Technical Data

Model Trough Size
(mm)
Lendth Of The Bar
(mm)
Maximum Feeding Size
(mm)
Application Maximum Processing Capacity
(t/h)
Main Motor Power
(kw)
HSF1040 1000×4000 1×900 700 fixed/movable 400 15
HSF1245 1200×4500 1×900 800 fixed/movable 500 22
HSF1262(S) 1200×6200 2×900 800 fixed 500 22
HSF1345 1300×4500 1×900 900 fixed/movable 750 22
HSF1362(S) 1300×6200 2×900 900 fixed 750 30
HSF1562(S) 1500×6200 2×900 1000 fixed 800 30
HSF1862(S) 1800×6200 2×900 1200 fixed 1200 37
HSF2162 2100×6200 2×900 1500 fixed 1700 45

the types with (S) means you can choose additional sieve layer
