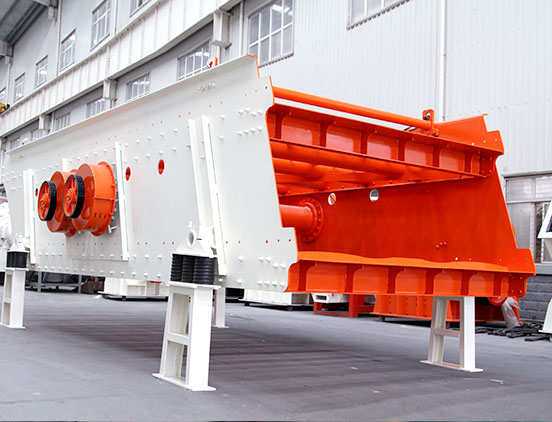

HX Series Vibrating Screen

HX Series Vibrating Screen

Reference Price:

Get Latest Price Reference Price
  • Production Capacity
    75-1300t/h

  • Feeding Size
    200-400mm

  • More than 200 kinds of materials

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

Processing Material: stone,rocks,pebble,limestone,calcite, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,basalt and other minerals.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

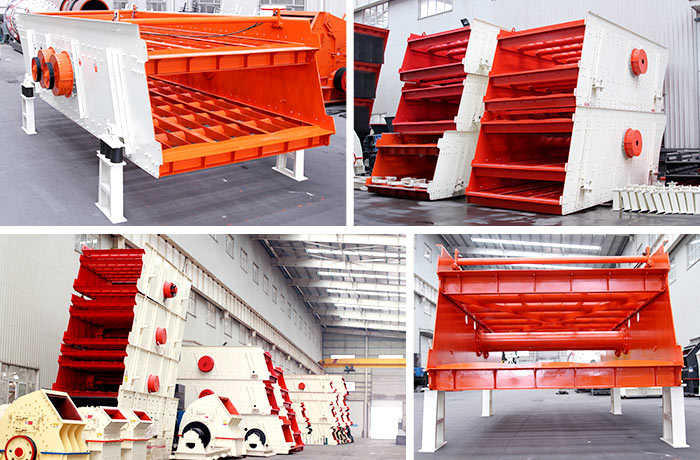

Introduction of HX Series Vibrating Screen

1.HX series vibrating screen is a kind of new vibrating screen produced by our company. It is upgraded and improved according to the customers’ feedback and maintenance experience.

2.It is widely used for screening gravel, rock ,sand, aggregate and other stones and ores in stone crushing line, sand making production line, mobile crushing plants and ore beneficiation plant.

3.Circular vibrating screen can not only be featured with single layer,but also be with multi-layers. It is  used to sort and classify the materials accoding to the particle size by its circular vibration.

Advantages of HX Series Vibrating Screen

1.With screen angle of 18°, it has higher screening efficiency. Thin oil self-lubrication, replace the oil once every 3-6 months.

2.A wear-resistant rubber protective layer has been used at key parts to extend the service life of the screen.

3.Easy operation and maintenance.

4.Energy saving,low ccosts.

Technical Data

Model Sieve Layer Sieve Obliquity
(°)
Motor Power
(kw)
Vibrating Frequency
(r/min)
Max.Feeding Size
(mm)
Production(t/h) Dimensions(mm)
(L×W×H)
2ZD1545 2 18 15 780-900 200 60-500 5380×2295×1410
3ZD1545 3 18 15 780-900 200 65-500 5575×2295×1990
4ZD1545 4 18-20 18.5 780-900 200 65-500 5765×2295×1990
2ZD1855 2 18 18.5 780-900 200 75-600 5680×2565×1450
3ZD1855 3 18 22 780-900 200 75-600 5900×2565×2110
4ZD1855 4 18-23 22 780-900 200 75-600 6030×2565×2500
2ZD2165 2 18 30 780-900 200 85-700 7160×2990×1690
3ZD2165 3 18 30 780-900 200 85-700 7380×2990×2365
4ZD2165 4 18-23 37 780-900 200 85-700 7430×2990×2550
2ZD2465 2 18 37 780-900 200 100-800 7160×3290×1690
3ZD2465 3 18 37 780-900 200 100-800 7380×3290×2365
4ZD2465 4 18-23 37 780-900 200 100-800 7430×3290×2500
2ZD2765 2 18 37 780-900 200 120-900 7180×3570×1805
3ZD2765 3 18 45 780-900 200 120-900 7390×3570×2445
4ZD2765 4 18-23 45 780-900 200 120-900 7480×3570×2715
2ZD3065 2 18 37 780-900 200 200-1200 7180×3870×1805
3ZD3065 3 18 45 780-900 200 200-1200 7390×3870×2445
4ZD3065 4 18-23 45 780-900 200 200-1200 7480×3870×2715
2ZD3075 2 18 22×2 780-900 400 200-1300 8700×4055×1980
3ZD3075 3 18 37×2 780-900 400 200-1300 8940×4120×2720

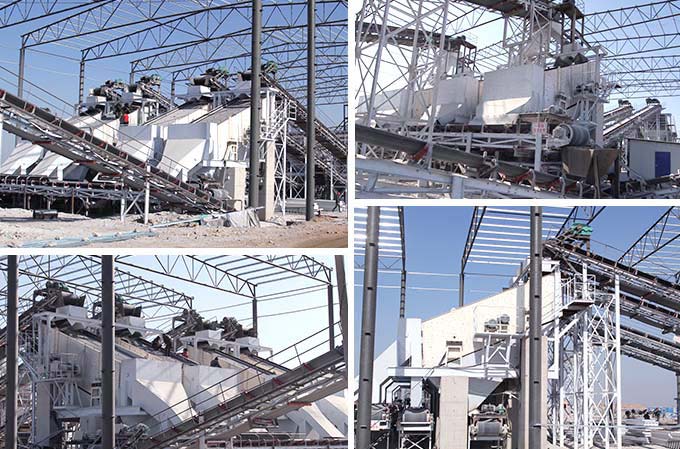

RELATED CASE
