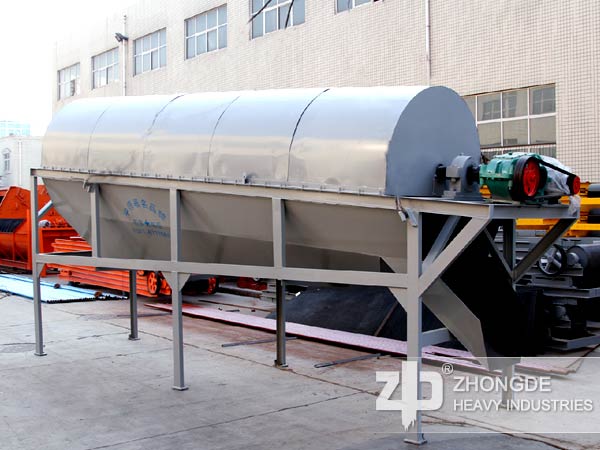

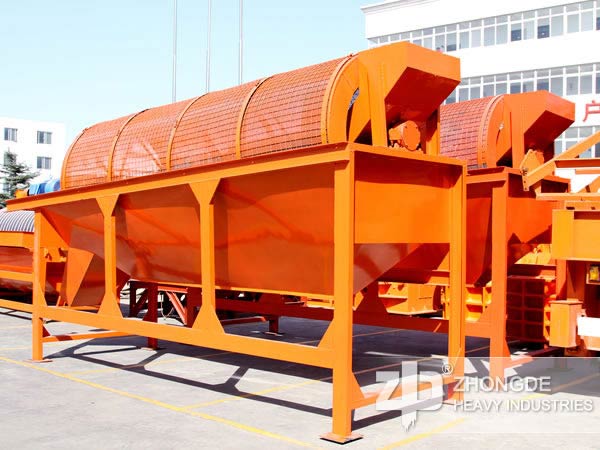

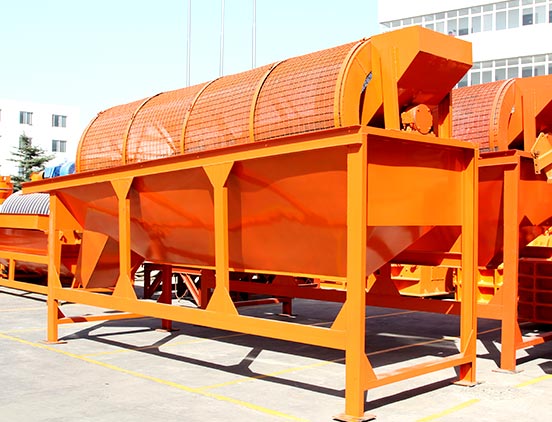

Trommel Screen

Trommel Screen

Reference Price:

Get Latest Price Reference Price

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

Processing Materials:iron ore, copper ore, gold ore, coal , gravel, etc.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

Application of Trommel Screen

1)Gold Mine: gold screening and washing

2)Quarry: gravel, clay, metal ore, sand, etc.

3)Coal Industry: lump coal, coal dust, coal washing, etc.


Working procedure of Trommel Screen

1) Input of raw materials through heavy equipment

Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.

2) Grading and cleaning of raw materials

 Raw materials of the trommel screen will be cleaned and classified by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.


Advantages of Trommel Screen

1. Wide production capacity range,12-150t/h,full models for sale;

2. Low costs,economical and efficient solution for screening;

3. Easy operation and maintenance,wide application to minerals;

4. Screen replaceable for different mesh sizes;

4. Easily change screen plates;

Technical Data

Model Yield(m3/h) Power
Sieve hole(2mm) Sieve hole(30mm)
YTS1230 12 100 5.5
YTS1240 14 120 5.5
YTS1250 15 140 5.5
YTS1530 18 150 5.5
YTS1540 18 150 7.5
YTS1550 20 180 11
YTS1560 22 200 11
YTS2040 25 250 15
YTS2050 30 300 15
YTS2060 35 350 18.5
